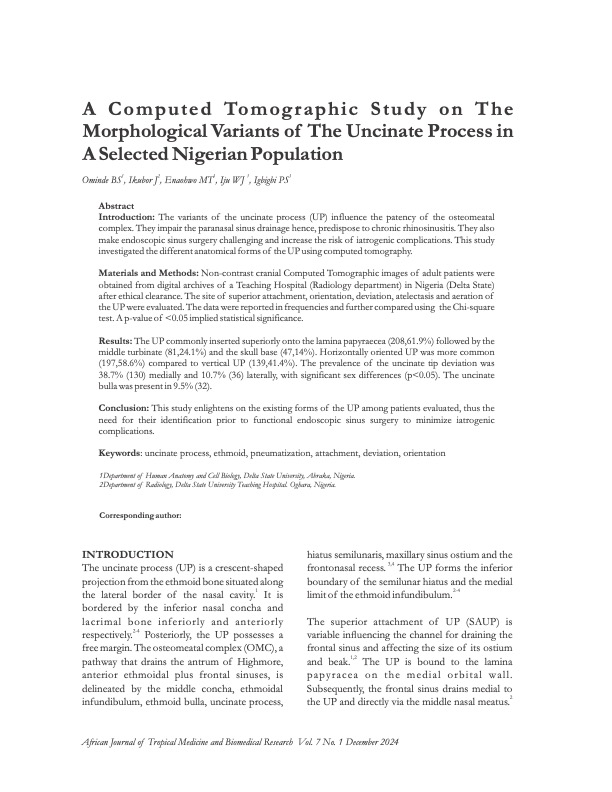

A Computed Tomographic Study on The Morphological Variants of The Uncinate Process in A Selected Nigerian Population

Authors

  • Dr. Ominde Beryl Shitandi Department of Human Anatomy, Delta State University, Abraka, Nigeria Author
  • Dr. Ikubor Joyce Ekeme Delta State University Teaching Hospital, Oghara. Author
  • Dr. Enaohwo Taniyohwo Mamerhi Author
  • Dr. Iju Wilson Josiah Delta State University Teaching Hospital, Oghara. Author
  • Prof. Patrick S. Igbigbi Delta State University Teaching Hospital, Oghara. Author

DOI:

https://doi.org/10.4314/

Keywords:

uncinate process, ethmoid, pneumatization, attachment, deviation, orientation

Abstract

Introduction: The variants of the uncinate process (UP) influence the patency of the osteomeatal complex. They impair the paranasal sinus drainage hence, predispose to chronic rhinosinusitis. They also make endoscopic sinus surgery challenging and increase the risk of iatrogenic complications. This study investigated the different anatomical forms of the UP using computed tomography.

Materials and Methods: Non-contrast cranial Computed Tomographic images of adult patients were obtained from digital archives of a Teaching Hospital (Radiology department) in Nigeria (Delta State) after ethical clearance. The site of superior attachment, orientation, deviation, atelectasis and aeration of the UP were evaluated. The data were reported in frequencies and further compared using the Chi-square test. A p-value of <0.05 implied statistical significance.

Results: The UP commonly inserted superiorly onto the lamina papyraecea (208,61.9%) followed by the middle turbinate (81,24.1%) and the skull base (47,14%). Horizontally oriented UP was more common (197,58.6%) compared to vertical UP (139,41.4%). The prevalence of the uncinate tip deviation was 38.7% (130) medially and 10.7% (36) laterally, with significant sex differences (p<0.05). The uncinate bulla was present in 9.5% (32).

Conclusion: This study enlightens on the existing forms of the UP among patients evaluated, thus the need for their identification prior to functional endoscopic sinus surgery to minimize iatrogenic complications.

Author Biographies

  • Dr. Ominde Beryl Shitandi, Department of Human Anatomy, Delta State University, Abraka, Nigeria

    Lecturer

    Department of Human Anatomy and Cell Biology

  • Dr. Ikubor Joyce Ekeme, Delta State University Teaching Hospital, Oghara.

    Associate Professor in the Radiology Department

  • Dr. Iju Wilson Josiah, Delta State University Teaching Hospital, Oghara.

    Associate Professor in the Department of Human Anatomy and Cell Biology

  • Prof. Patrick S. Igbigbi, Delta State University Teaching Hospital, Oghara.

    Professor

    Department of Human Anatomy and Cell Biology

References

Arun G, Moideen, SP, Mohan M, Afroze KH, Thampy AS. Anatomical variations in superior attachment of uncinate process and localization of frontal sinus out flowtract. Int J Otorhinolaryngol Head Neck Surg. 2017;3: 176-179. DOI: h t t p s : / /doi.org/10.18203/issn.2454-5929.ijohns20160077

Oghenero G, Oniovo K, Olotu B, Sagbodje D. Morphology and anatomical variations of ethmoidal sinus in adult Nigerians. Afr J Med.Surg. 2017;4: 095-100.

Ominde BS, Ikubor JE, Igbigbi PS. Prevalence of Prominent Ethmoid Bulla and Agger Nasi Cell in Adult Nigerians and Their Clinical Implications: CT Study. Acta Scientific Anatomy. 2022; 1(7):12-17.

Lingaiah RK, Puttaraj NC, Chikkaswamy HA, Nagarajaiah PK, Purushothama S, Prakash V, et al. Anatomical Variations of Paranasal Sinuses on Coronal CT-Scan in Subjects with Complaints Pertaining to PNS. Int J Anat Radiol Surg. 2016;5: R027-R033.

Fadda GL, Rosso S, Aversa S, Petrelli A, Ondolo C, Succo G. Multiparametric statistical correlations between paranasal sinus anatomic variations and chronic Rhinosinusitis. Acta Otorhinolaryngol Ital. 2012; 32: 244-51.

Shiekh Y, Wan AH, Khan AJ, Bhat MI. Anatomical Variations of Paranasal Sinuses - A MDCT Based Study. Int Arch Integr Med. 2019;6: 300-306.

Dasar U, Gokce E. Evaluation of variations in sinonasal region with computed tomography. World J Radio. 2016;8: 98-108. DOI:10.4329/wjr.v8.i1.98

Tuli IP, Sengupta S, Munjal S, Kesari SP, Chakraborty S. Anatomical variations of uncinate process observed in chronic sinusitis. Indian J Otolaryngol Head Neck Surg. 2013;65: 157-61. DOI: 10.1007/s12070-012-0612-8.

Gungor G, Okur N. Evaluation of paranasal sinus variations with computed tomography. Haydarpasa Numune Med J. 2019;59: 320- 327. DOI: 10.14744/hnhj.2019.48243

Ominde BS, Igbigbi PS. Frontal sinus dimensions: An aid in gender determination in adult Nigerians. Int J Forensic Odontol. 2021; 6:22-6. DOI: 10.4103/ijfo.ijfo_4_21

Ominde BS, Ikubor J, I gbi gbi PS. Pneumatization patterns of the sphenoid sinus in adult Nigerians and their clinical imply c ations. Ethiop J He a lth Sc i. 2021;31(6):1295. DOI: 10.4314/ejhs.v 31i6.26

Kansu L. The relationship between superior attachment of the uncinate process of the ethmoid and varying paranasal sinus anatomy: an analysis using computerized tomography. ENT Updates. 2019;9: 81–89. DOI: 10.32448/entupdates.595449

Ominde BS, Igbigbi PS. The Coexistence of Concha Bullosa and Nasal Septum Deviation in Adult Nigerians. Indian J Health Sci Biomed Res. 2022; 15(3): 219- 223. DOI: 10.4103/kleuhsj.kleuhsj_379_21

Kaya M, Çankal F, Gumusok M, Apaydin N, Tekdemir I. Role of anatomic variations of paranasal sinuses on the prevalence of sinusitis: Computed tomography findings of 350 patients. Niger J Clin Prac. 2017;20;1481–1488. DOI: 10.4103/ njcp.njcp_199_16

Mahajan A, Anupama M, Karunesh G, Pankaj V. Anatomical Variations of Osteomeatal Complex: An Endoscopic Study. Anatomy Physiol Biochem. Int J. 2 0 1 8 ; 5 : 5 5 5 6 5 9 . DOI: 1 0 . 1 9 0 8 0/ APBIJ.2018.05.555660.

Shpilberg KA, Daniel SC, Doshi AH, Lawson W, Som PM. CT of anatomic variants of the paranasal sinuses and nasal cavity: poor correlation with radiologically significant rhinosinusitis but importance in surgical planning. Am J Roentgenol. 2015;204: 1255-60. DOI: 10.2214/ AJR.14.13762.

Bolger WE, Woodruff W, Parsons D. CT demonstration of pneumatization of the uncinate process. Am J Neuroradiol. 1990;11: 552.

Abesi F, Haghanifar S, Khafri S, Montazeri A. The evaluation of the Anatomical Variations of Osteomeatal Complex in Cone Beam Computed Tomography Images. J Babol Univ Med Sci. 2018;20: 30-34. URL: http://jbums.org/article-1-7055-en.html

Ominde BS, Ikubor J, Iju W, Nekwu O, Igbigbi PS. Variant Anatomy of the Nasal Turbinates in Adult Nigerians. Eur J Rhinol Allergy 2021;4(2):36-40. DOI: 10.5152/ ejra.2021.21029


Downloads

Published

01/28/2025

How to Cite

1.
Ominde B, Ikubor J, Enaohwo M, Iju W, Igbigbi P. A Computed Tomographic Study on The Morphological Variants of The Uncinate Process in A Selected Nigerian Population. AJTMBR [Internet]. 2025 Jan. 28 [cited 2025 Apr. 8];7(1):77-85. Available from: https://ajtmbr.org.ng/index.php/home/article/view/109
